| ब्रांड नाम: | ZI QIANG |
| मॉडल संख्या: | ZQ 80 |
| एमओक्यू: | 1 |
| कीमत: | 60000 USD |
| भुगतान की शर्तें: | टी/टी |

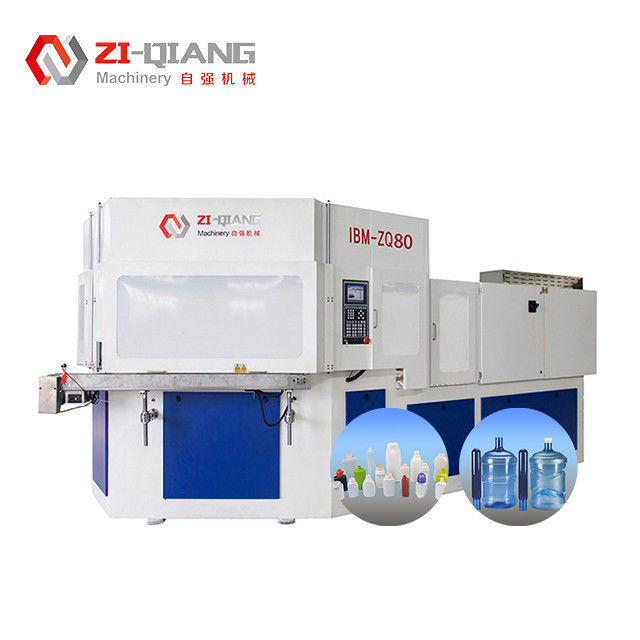

This industrial-grade injection blow molding machine delivers exceptional performance with energy-efficient operation, designed for high-volume production of plastic containers.
| System | Parameter | Value |
|---|---|---|
| Injection System | Screw Diameter | 55 mm |
| Screw L/D | 22:1 | |
| Injection Weight | 314 g | |
| Heating Power | 20 KW | |
| Number of Barrel Zones | 5+N | |
| Injection Stroke | 160 mm | |
| Clamping System | Clamping Force (Injection) | 800 KN |
| Opening Stroke (Injection) | 140 mm | |
| Clamping Force (Blowing) | 120 KN | |
| Opening Stroke (Blowing) | 140 mm | |
| Lifting Height of Rotary Table | 70 mm | |
| Mold Specifications | Max Platen Size (L*W) | 800*400 mm |
| Mold Thickness | 280 mm | |
| Bottle Diameter | 120 mm | |
| Bottle Height | 220 mm | |
| Suitable Bottle Height Range | 1-1000 mm | |
| Stripping Stroke | 230 mm | |
| Hydraulic System | Hydraulic Pressure | 14 Map |
| Motor Power | 22+22 KW | |
| Dry Cycle | 4 S | |
| Total Power | 70 KW | |
| Operating Power | 52-70% | |
| Additional Specifications | Min. Air Pressure | 0.7-1.2 MPa |
| Compressed Air Capacity | 0.7 M³/min | |
| Water Flow Rate | 4 M³/h | |
| Cooling Water Pressure | 0.3-0.4 MPa | |
| Dimensions (L*W*H) | 4.5*1.6*2 M | |
| Net Weight | 10 Ton |
|
